| Product | Socket Welding Fittings |
|---|---|
| Category | STR. Tee |
| Name | [EEMUA 146 7060X] Socket Welding Type Straight Tee For Cu-Ni Pipe |
| Materials | EEMUA 146 7060X |
제품설명

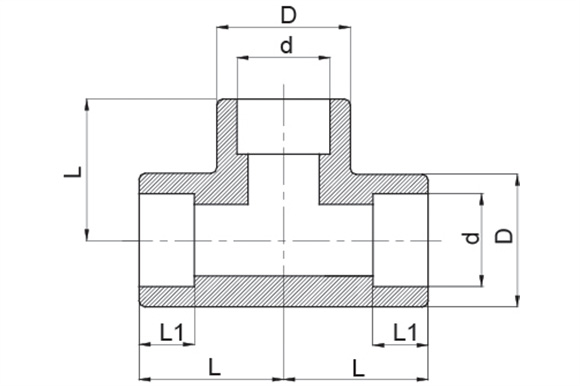

- Unit : mm
| Pipe | Dimension | Remark | ||||
|---|---|---|---|---|---|---|
| N/D | O/D | D | d | L | L1 | |
| 1/2" | 16 | 23.0 | 16.1 | 21.0 | 10.0 | |
| 3/4" | 25 | 32.0 | 25.1 | 26.0 | 13.0 | |
| 1" | 30 | 37.0 | 30.1 | 28.5 | 13.0 | |
| 1 1/2" | 44.5 | 52.0 | 44.6 | 41.0 | 13.0 | |
*NOTE :
1. Dimension Per EEMUA 146
2. Process : Hot Forming
3. Heat Treatment : Annealing After Hot Forming
4. Temp & Hold Time : 750℃±50℃, 30Min / Inch(THK)
2. Process : Hot Forming
3. Heat Treatment : Annealing After Hot Forming
4. Temp & Hold Time : 750℃±50℃, 30Min / Inch(THK)
