| Product | Composite Type Flanges |
|---|---|
| Category | Welding Neck |
| Name | [EEMUA 145 7060X + A105] Composite Welding Neck Flange For Cu-Ni Pipe |
| Materials | EEMUA 145 7060X + A105 |
제품설명

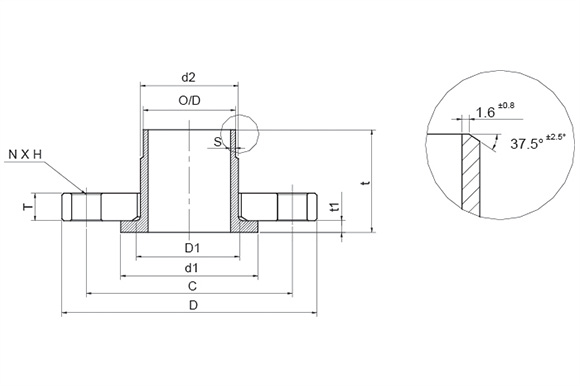

- Unit : mm
| Pipe | Internal Flange | External Flange | Bolt | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| N/D | O/D | d1 | d2 | S | t | t1 | D | C | D1 | T | N | H | ||
| 16Bar | 20Bar | Type S | Type L | |||||||||||
| 1/2" | 16.0 | 40.0 | 18.0 | 2.0 | 2.0 | 35 | 51 | 4 | 89 | 60.3 | 19 | 14 | 4 | 15.9 |
| 3/4" | 25.0 | 50.0 | 27.0 | 2.0 | 2.0 | 40 | 51 | 5 | 98 | 69.8 | 28 | 14 | 4 | 15.9 |
| 1" | 30.0 | 60.0 | 32.0 | 2.5 | 2.5 | 40 | 51 | 5 | 108 | 79.4 | 363 | 14 | 4 | 15.9 |
| 1 1/4" | 38.0 | 70.0 | 40.0 | 2.5 | 2.5 | 40 | 51 | 5 | 117 | 88.9 | 41 | 14 | 4 | 15.9 |
| 1 1/2" | 44.5 | 80.0 | 46.5 | 2.5 | 2.5 | 45 | 51 | 6 | 127 | 98.4 | 48 | 14 | 4 | 15.9 |
| 2" | 57.0 | 99.0 | 59.0 | 2.5 | 2.5 | 45 | 64 | 6 | 152 | 120.6 | 62 | 18 | 4 | 19.0 |
| 2 1/2" | 76.1 | 120.0 | 78.0 | 2.5 | 2.5 | 45 | 64 | 6 | 178 | 139.7 | 81 | 18 | 4 | 19.0 |
| 3" | 88.9 | 130.0 | 91.0 | 2.5 | 2.5 | 50 | 64 | 7 | 190 | 152.4 | 94 | 19 | 4 | 19.0 |
| 4" | 108.0 | 158.0 | 110.0 | 3.0 | 3.0 | 50 | 76 | 7 | 229 | 190.5 | 113 | 24 | 8 | 19.0 |
| 6" | 159.0 | 212.0 | 161.5 | 3.0 | 3.5 | 60 | 89 | 9 | 279 | 241.3 | 164 | 27 | 8 | 22.2 |
| 8" | 219.1 | 270.0 | 222.0 | 4.0 | 4.5 | 50 | 102 | 9 | 343 | 298.4 | 225 | 31 | 8 | 22.2 |
| 10" | 267.0 | 320.0 | 270.0 | 4.5 | 5.5 | 50 | 127 | 9 | 406 | 362.0 | 273 | 38 | 12 | 25.4 |
| 12" | 323.9 | 370.0 | 327.0 | 5.5 | 7.0 | 50 | 152 | 11 | 483 | 431.8 | 3630 | 41 | 12 | 25.4 |
| 14" | 368.0 | 430.0 | 371.0 | 6.5 | 8.0 | 50 | 125 | 11 | 533 | 476.2 | 374 | 45 | 12 | 28.6 |
| 16" | 419.0 | 482.0 | 422.0 | 7.0 | 9.0 | 50 | 152 | 12 | 597 | 539.8 | 426 | 51 | 16 | 28.6 |
| 18" | 457.2 | 530.0 | 460.0 | 8.0 | 9.5 | 50 | 152 | 12 | 635 | 577.8 | 465 | 52 | 16 | 31.8 |
| 20" | 508.0 | 585.0 | 511.0 | 8.5 | 11.0 | 50 | 152 | 12 | 698 | 635.0 | 517 | 58 | 20 | 31.8 |
| 24" | 610.0 | 685.0 | 613.0 | 10.5 | 13.0 | 60 | 152 | 14 | 813 | 749.3 | 618 | 71 | 20 | 34.9 |
*NOTE :
1. Dimension Per EEMUA 145
2. Process : Hot Forming
3. Heat Treatment : Annealing After Hot Forming
4. Temp & Hold Time : 750℃,50℃, 30Min / Inch(THK)
2. Process : Hot Forming
3. Heat Treatment : Annealing After Hot Forming
4. Temp & Hold Time : 750℃,50℃, 30Min / Inch(THK)
