[2.1972.22 + A105 (GAL'V)] Din 10Bar Composite Welding Neck Flange For Cu-Ni Pipe

페이지 정보

profile_image
작성자 Samyang
댓글 0건 조회 1,465회 작성일 20-08-17 16:38

본문

Product Composite Type Flanges
Category Welding Neck
Name [2.1972.22 + A105 (GAL'V)] Din 10Bar Composite Welding Neck Flange For Cu-Ni Pipe
Materials 2.1972.22 + A105 (GAL'V)

제품설명

  • Unit : mm

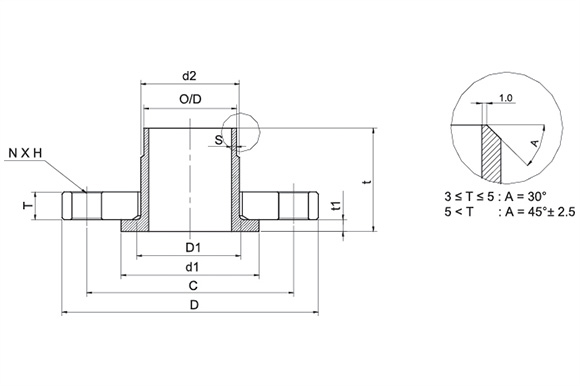

Pipe Internal Flange External Flange Bolt Remark
N/D O/D d1 d2 S t t1 D C D1 T N H
10Bal 14Bal
DN20 25.0 58.0 27.0 1.5 - 40 5 105 75.0 28 14 4 14.0
DN25 30.0 68.0 32.0 1.5 - 40 5 115 85.0 33 16 4 14.0
DN32 38.0 78.0 40.0 1.5 - 40 5 140 100.0 42 16 4 18.0
DN40 44.5 88.0 65.5 1.5 - 45 6 150 110.0 50 16 4 18.0
DN50 57.0 102.0 59.0 1.5 - 45 6 165 125.0 62 16 4 18.0
DN65 76.0 122.0 78.0 2.0 - 45 6 185 145.0 81 16 4 18.0
DN80 98.0 138.0 91.0 2.0 2.5 50 7 200 160.0 94 18 8 18.0
DN100 108.0 158.0 110.0 2.5 - 50 7 220 180.0 113 18 8 18.0
DN125 133.0 188.0 135.5 2.5 3.0 50 7 250 210.0 138 18 8 18.0
DN150 159.0 212.0 161.5 2.5 3.0 50 9 285 240.0 164 18 8 22.0
DN200 219.0 268.0 222.0 3.0 3.5 50 9 340 295.0 225 20 8 22.0
DN250 267.0 320.0 270.0 3.0 4.0 50 9 395 350.0 273 22 12 22.0
DN300 324.0 370.0 327.0 4.0 5.0 50 11 445 400.0 33 24 12 22.0
DN350 368.0 430.0 371.0 4.0 5.5 50 11 505 460.0 375 24 16 22.0
DN400 419.0 482.0 422.0 4.0 6.0 50 12 565 515.0 426 26 16 26.0
DN450 457.0 530.0 460.0 4.0 6.0 50 12 615 565.0 465 28 20 26.0
DN500 508.0 858.0 511.0 4.5 6.5 50 12 670 620.0 517 30 20 26.0
DN600 610.0 685.0 613.0 5.0 8.0 60 14 780 725.0 618 32 20 30.0
*NOTE : 1. Dimension Per DIN 86037
2. Process : Hot Forming
3. Heat Treatment : Annealing After Hot Forming
4. Temp & Hold Time : 750℃±50℃, 30Min / Inch(THK)
