| Product | Miscellaneous Fittings |
|---|---|
| Category | Outlet |
| Name | [EEMUA 146 7060X] Weldolet For Cu-Ni Pipe |
| Materials | EEMUA 146 7060X |
Product Information
- Unit : mm

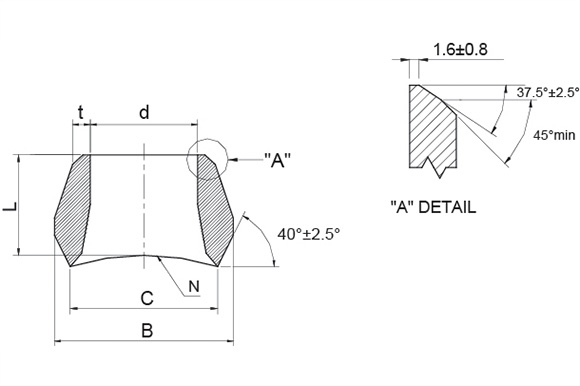

| Pipe | Main Pipe | Dimension | Remark | ||||||
|---|---|---|---|---|---|---|---|---|---|
| N/D | O/D | N | L | d | t | B | C | ||
| SPEC. | Min. | ||||||||
| 2" | 57.0 | 2" to 2 1/2" | 38.1 | 52.0 | 2.5 | 2.25 | 88.9 | 65.1 | |
| 3" to 24" | 33.3 | ||||||||
| 2 1/2" | 76.1 | 2 1/2" to 4" | 47.6 | 71.1 | 2.5 | 2.25 | 103.2 | 76.2 | |
| 6" to 24" | 44.5 | ||||||||
| 3" | 88.9 | 3" to 4 | 47.6 | 83.9 | 2.5 | 2.25 | 122.2 | 93.7 | |
| 6" to 24" | 44.5 | ||||||||
| 4" | 108.0 | 4" | 46.8 | 102.0 | 3.0 | 2.7 | 152.4 | 120.7 | |
| 6" | 52.4 | ||||||||
| 8" to 24" | 49.2 | ||||||||
*NOTE :
1. Dimension Per EEMUA 146
2. Process : Hot Forming
3. Heat Treatment : Annealing After Hot Forming
4. Temp &Hold Time : 750℃±50℃, 30Min / Inch(THK)
2. Process : Hot Forming
3. Heat Treatment : Annealing After Hot Forming
4. Temp &Hold Time : 750℃±50℃, 30Min / Inch(THK)
