| Product | Socket Welding Fittings |
|---|---|
| Category | STR. Tee |
| Name | [ASTM UNS C70600] 3000# Socket Welding Type Straight Tee For Cu-Ni Pipe |
| Materials | ASTM UNS C70600 |
Product Information
- Unit : mm

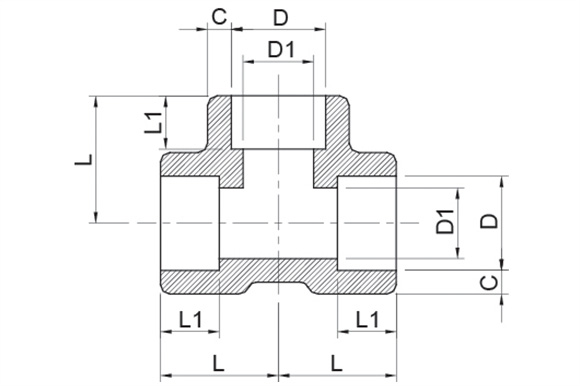

| Pipe | Dimension | Remark | ||||||
|---|---|---|---|---|---|---|---|---|
| N/D | O/D | D±0.2 | D1 | C | L | L1 (Min.) |
||
| AVG. | MIN. | |||||||
| 1/2" | 21.3 | 22.0 | 15.3 | 4.67 | 4.09 | 25.0 | 9.5 | |
| 3/4" | 26.7 | 27.4 | 20.7 | 4.90 | 4.27 | 31.5 | 12.5 | |
| 1" | 33.4 | 34.1 | 26.4 | 5.69 | 4.98 | 35.0 | 12.5 | |
| 1 1/2" | 48.3 | 49.0 | 40.3 | 6.35 | 5.54 | 44.5 | 12.5 | |
*NOTE :
1. Dimension Per ASME B16.11
2. Process : Hot Forming
3. Heat Treatment : Annealing After Hot Forming
4. Temp & Hold Time : 750℃±50℃, 30Min / Inch(THK)
2. Process : Hot Forming
3. Heat Treatment : Annealing After Hot Forming
4. Temp & Hold Time : 750℃±50℃, 30Min / Inch(THK)
