| Product | Socket Welding Fittings |
|---|---|
| Category | RED. Tee |
| Name | [EEMUA 146 7060X] Socket Welding Type Reducing Tee For Cu-Ni Pipe |
| Materials | EEMUA 146 7060X |
Product Information
- Unit : mm

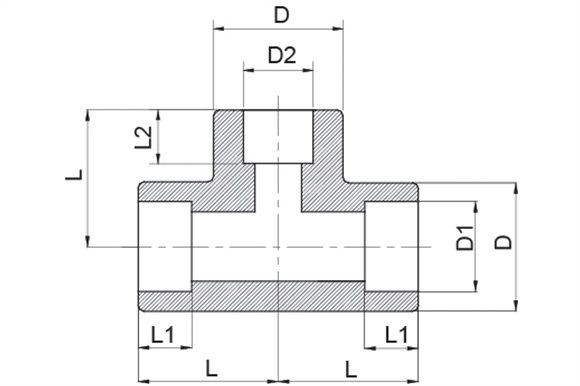

| Pipe | Dimension | Remark | ||||||
|---|---|---|---|---|---|---|---|---|
| N/D | O/D | D | D1 | D2 | L | L1 | L2 | |
| 3/4"X1/2" | 25X16 | 32 | 25.1 | 16.1 | 26.0 | 13.0 | 10.0 | |
| 1"X3/4" | 30X25 | 37 | 30.1 | 25.1 | 28.5 | 13.0 | 13.0 | |
| 1"X1/2" | 30X16 | 37 | 30.1 | 16.1 | 28.5 | 13.0 | 10.0 | |
| 1 1/2"X1" | 44.5X30 | 52 | 44.6 | 30.1 | 41.0 | 13.0 | 13.0 | |
| 1 1/2"X3/4" | 44.5X25 | 37.0 | 44.6 | 25.1 | 41.0 | 13.0 | 13.0 | |
| 1 1/2"X1/2" | 44.5X16 | 52.0 | 44.6 | 16.1 | 41.0 | 13.0 | 10.0 | |
*NOTE :
1. Dimension Per EEMUA 146
2. Process : Hot Forming
3. Heat Treatment : Annealing After Hot Forming
4. Temp &smp; Hold Time : 750℃±50℃, 30Min / Inch(THK)
2. Process : Hot Forming
3. Heat Treatment : Annealing After Hot Forming
4. Temp &smp; Hold Time : 750℃±50℃, 30Min / Inch(THK)
