Product Socket Welding Fittings
Category Coupling
Name [EEMUA 146 7060X] Socket Welding Type Red Coupling For Cu-0Ni Pipe
Materials EEMUA 146 7060X

Product Information

  • Unit : mm

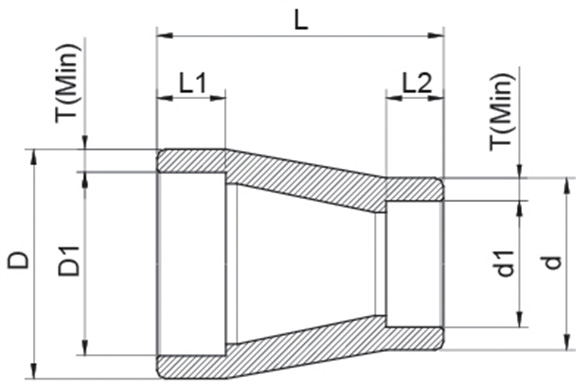

Pipe Dimension Remark
N/D O/D D D1 d d1 L L1 L2 T
3/4"X1/2" 25X16 32 25.1 23 16.1 36 13 10 3.2
3/4"X1/2" 30X16 37 30.1 23 16.1 37 13 10 3.2
1"X3/4" 30X25 37 30.1 32 25.1 33 13 13 3.2
1 1/2"X1/2" 44.5X16 52 44.6 23 16.1 49 13 10 3.3
1 1/2"x3/4" 44.5X25 52 44.6 32 25.1 43 13 13 3.2
*NOTE : 1. Dimension Per EEMUA 146
2. Process : Extrude Bar
