| Product | Butt Welding Fittings |
|---|---|
| Category | Elbow |
| Name | [2.1972.22] Butt Welding Type L/R Elbow |
| Materials | 2.1972.22 |
Product Information
- Unit : mm

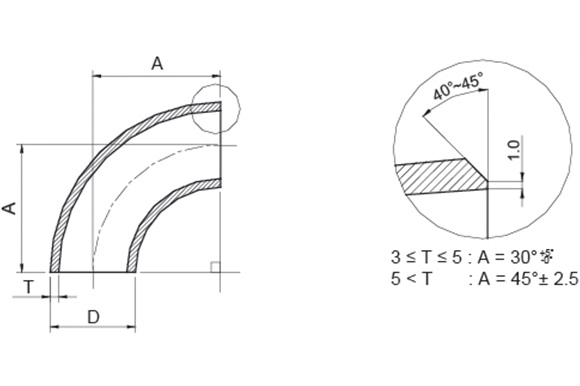

| Pipe | Dimension | Remark | ||||
|---|---|---|---|---|---|---|
| N/D | O/D | D | B | T | ||
| 10Bar | 14Bar | |||||
| DN25 | 30.0 | 30.0 | 33.5 | 1.5 | - | SEAMLESS |
| DN32 | 38.0 | 38.0 | 45.0 | 1.5 | - | SEAMLESS |
| DN40 | 44.5 | 44.5 | 51.0 | 1.5 | - | SEAMLESS |
| DN50 | 57.0 | 57.0 | 72.0 | 1.5 | - | SEAMLESS |
| DN65 | 76.0 | 76.0 | 95.0 | 2.0 | - | SEAMLESS |
| DN80 | 89.0 | 89.0 | 114.5 | 2.0 | 2.5 | SEAMLESS |
| DN100 | 108.0 | 108.0 | 142.5 | 2.5 | - | SEAMLESS |
| DN125 | 133.0 | 133.0 | 181.0 | 2.5 | 3.0 | SEAMLESS |
| DN150 | 159.0 | 159.0 | 216.0 | 2.5 | 3.0 | SEAMLESS |
| DN200 | 219.0 | 219.0 | 305.0 | 3.0 | 3.5 | SEAMLESS |
| DN250 | 267.0 | 267.0 | 387.0 | 3.0 | 4.0 | SEAMLESS |
| DN300 | 324.0 | 324.0 | 457.0 | 4.0 | 5.0 | SEAMLESS |
| DN350 | 368.0 | 368.0 | 533.5 | 4.0 | 5.5 | WELDED |
| DN400 | 419.0 | 419.0 | 609.5 | 4.0 | 6.0 | WELDED |
| DN450 | 457.0 | 457.0 | 686.0 | 4.0 | 6.0 | WELDED |
| DN500 | 508.0 | 508.0 | 762.0 | 5.0 | 6.5 | WELDED |
| DN600 | 610.0 | 610.0 | 914.0 | 5.0 | 8.0 | WELDED |
*NOTE :
1. Dimension Per DIN 86090
2. Process : Cold Forming
3. Heat Treatment : Annealing After Cold Forming
4. Temp & Hold Time : 750℃±50℃, 30Min / Inch(THK)
2. Process : Cold Forming
3. Heat Treatment : Annealing After Cold Forming
4. Temp & Hold Time : 750℃±50℃, 30Min / Inch(THK)
