Product Butt Welding Fittings
Category RED. Tee
Name [2.1972.22] Butt Welding Type Reducing Tee For Cu-Ni Pipe
Materials 2.1972.22

Product Information

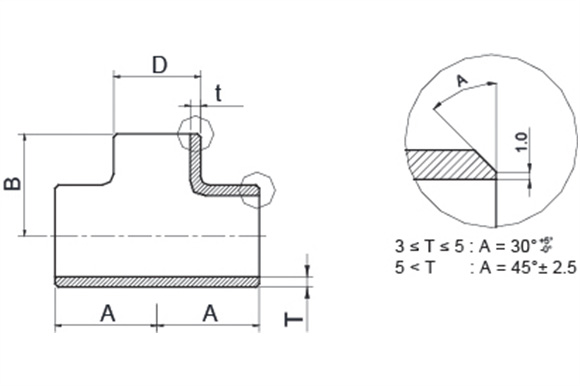

  • Unit : mm
Pipe Dimension Remark
N/D D d T t A B
10Bar 14Bar 10Bar 14Bar
DN32XDN25 38.0 30.0 1.5 - 1.5 - 48 42 SEAMLESS
DN40XDN32 44.5 38.0 1.5 - 1.5 - 57 51 SEAMLESS
DN40XDN25 44.5 30.0 1.5 - 1.5 - 57 45 SEAMLESS
DN50XDN40 57.0 44.5 1.5 - 1.5 - 64 63 SEAMLESS
DN50XDN32 57.0 38.0 1.5 - 1.5 - 64 57 SEAMLESS
DN50XDN25 57.0 30.0 1.5 - 1.5 - 64 51 SEAMLESS
DN65XDN50 76.0 57.0 2.0 - 1.5 - 76 73 SEAMLESS
DN65XDN40 76.0 44.5 2.0 - 1.5 - 76 71 SEAMLESS
DN65XDN32 76.0 38.0 2.0 - 1.5 - 76 62 SEAMLESS
DN80XDN65 89.0 76.0 2.0 2.5 2.0 - 86 83 SEAMLESS
DN80XDN50 89.0 57.0 2.0 2.5 1.5 - 86 80 SEAMLESS
DN80XDN40 89.0 44.5 2.0 2.5 1.5 - 86 76 SEAMLESS
DN100XDN80 108.0 89.0 2.5 - 2.0 2.5 105 96 SEAMLESS
DN100XDN65 108.0 76.0 2.5 - 2.0 - 105 92 SEAMLESS
DN100XDN50 108.0 57.0 2.5 - 1.5 - 105 90 SEAMLESS
DN125XDN100 133.0 108.0 2.5 3.0 2.5 - 124 117 SEAMLESS
DN125XDN80 133.0 89.0 2.5 3.0 2.0 2.5 124 108 SEAMLESS
DN125XDN65 133.0 76.0 2.5 3.0 2.0 - 124 105 SEAMLESS
*NOTE : 1. Dimension Per DIN 86088
2. Process : Cold Forming
3. Heat Treatment : Annealing After Cold Forming
4. Temp & Hold Time : 750℃±50℃, 30Min / Inch(THK)
